- 38 -

Following Distance Settings

The Following Distance/alerts conﬁguration number is a numeric value that represents the current

conﬁguration of the ACB sensor following distance setting and alerts.

Control Buttons for Conﬁguration:

• The Modify button will open change window, allowing the technician to reset the alignment value to

zero and change the alert following distance conﬁguration number. Additionally, the technician is

permitted to save or load the ACB sensor conﬁguration ﬁle.

• The Help button will open the HELP page

• The Close button will close the window

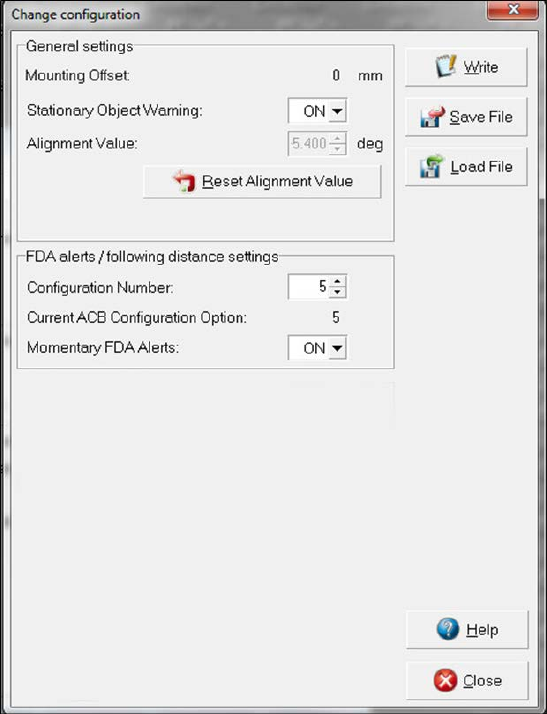

Figure 41

Control Buttons for Change Conﬁguration:

• The Write button writes the conﬁguration changes to the ACB sensor

• The Save File button saves the conﬁguration ﬁle of the ACB sensor

• The Load File button loads the conﬁguration ﬁle of the ACB sensor

• The Help button will open the HELP page

• The Close button will close the window
