Installation Test

The Installation Test is for OEMs to make end-of-line verification tests on new vehicles.

The test allows the technician to verify the proper installation of the ECU and system components.

NOTE: In order for the Installation Test to run, the technician must first acknowledge the system-generated

warning indicating that the vehicle must be parked on a level surface.

Additionally, the Bendix

ACom

Diagnostics software Installation Test provides a check of the ABS

components with the help of technician input. Please note that the Installation Test is intended as a

tool to assist the quality control process at the vehicle manufacturer. However, this test must not

be relied on as the sole validation check of proper brake system installation. The vehicle

manufacturer must ensure appropriate process controls are in place in the manufacturing process

to completely validate the vehicle brake system prior to vehicle shipment.

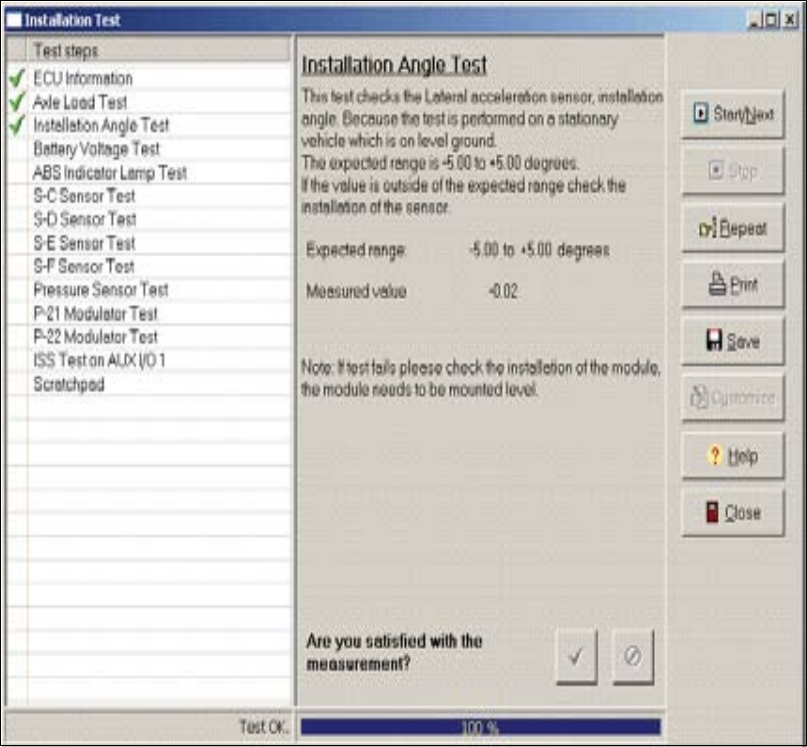

Figure 26
