- 34 -

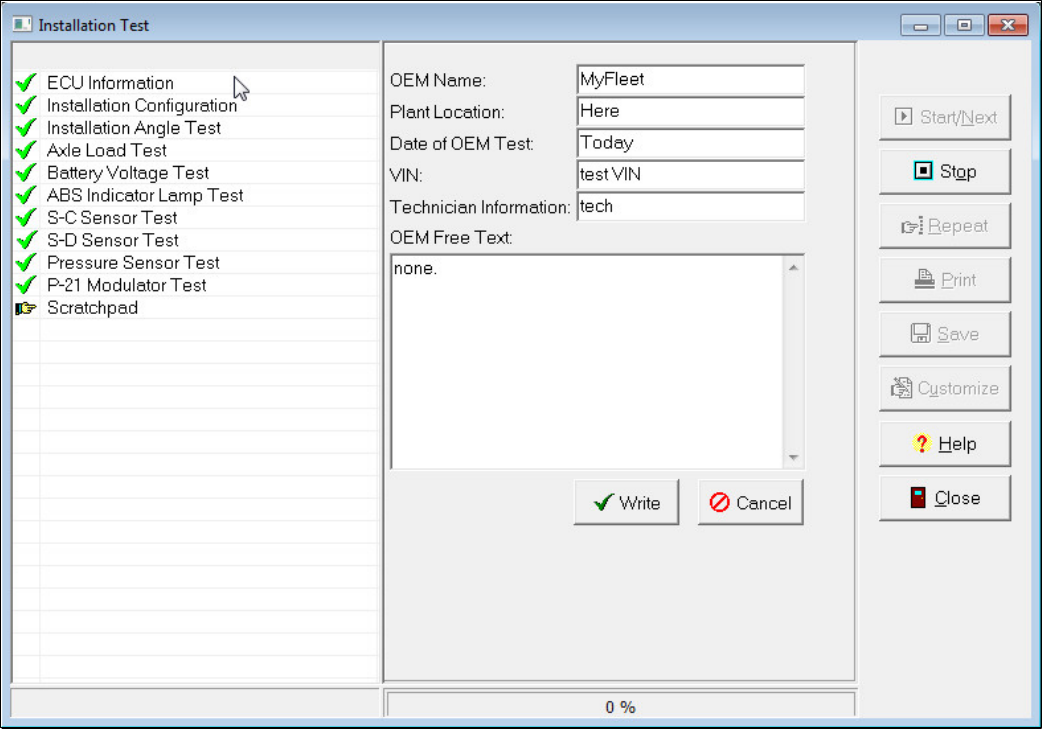

Scratch Pad Test
The Scratch Pad Test will write information to the ECU’s scratch pad, indicating that the installation test
has been performed.
Once the scratch pad information is written into the ECU, the technician can select to Print or Save the
installation report for their records.
Figure 37
