Wheel Speed Sensor (WSS) Screen

The Wheel Speed Sensor screen allows the technician to record the sensor output as the wheels rotate.

Additionally, there is a sensor air gap field which indicates the wheel speed when the sensor starts

registering speed. A lower air gap speed value (e.g. 3 to 4) indicates a properly adjusted wheel speed

sensor. An air gap speed value higher than 5 typically indicates that the wheel speed sensor needs to be

adjusted by installing the sensor so that it is close to the tone ring — eliminating the distance between the

sensor and tone ring (See the Service Data sheet for wheel speed sensors for more information).

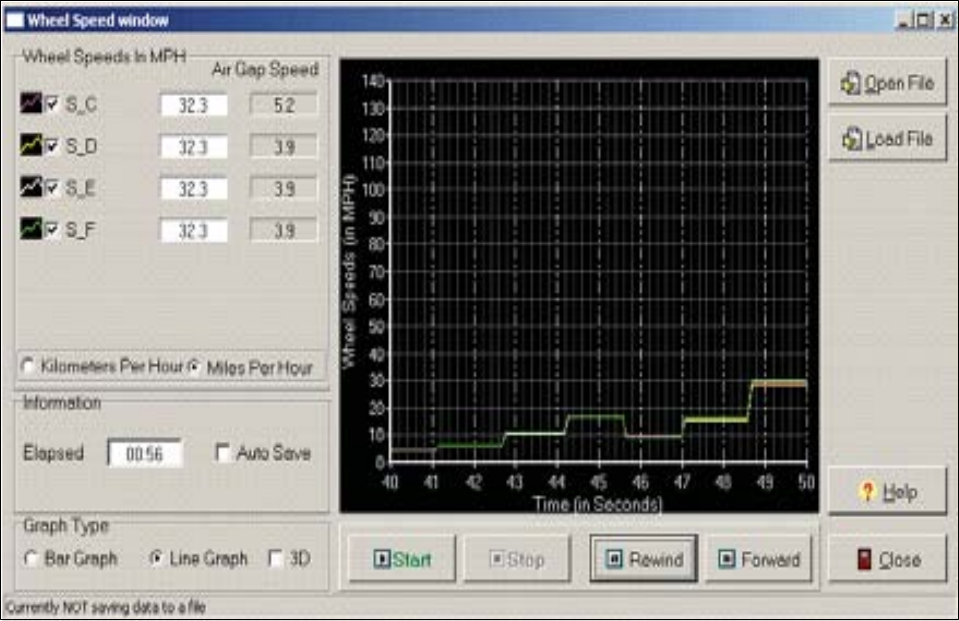

Figure 10

Control Buttons for Graph:

•

The Start button will start the data collection

•

The Stop button will stop the data collection

•

The Rewind button will rewind the data

•

The Forward button will forward the data

•

The graph display can be a line graph (default), a bar graph or 3D-style

Control Buttons for Wheel Speed:

•

The Open button ﬁle will open an existing wheel speed ﬁle

•

The Load button ﬁle will load an existing wheel speed ﬁle

•

The Help button will open the Help page

•

The Close button will close the screen
