- 30 -

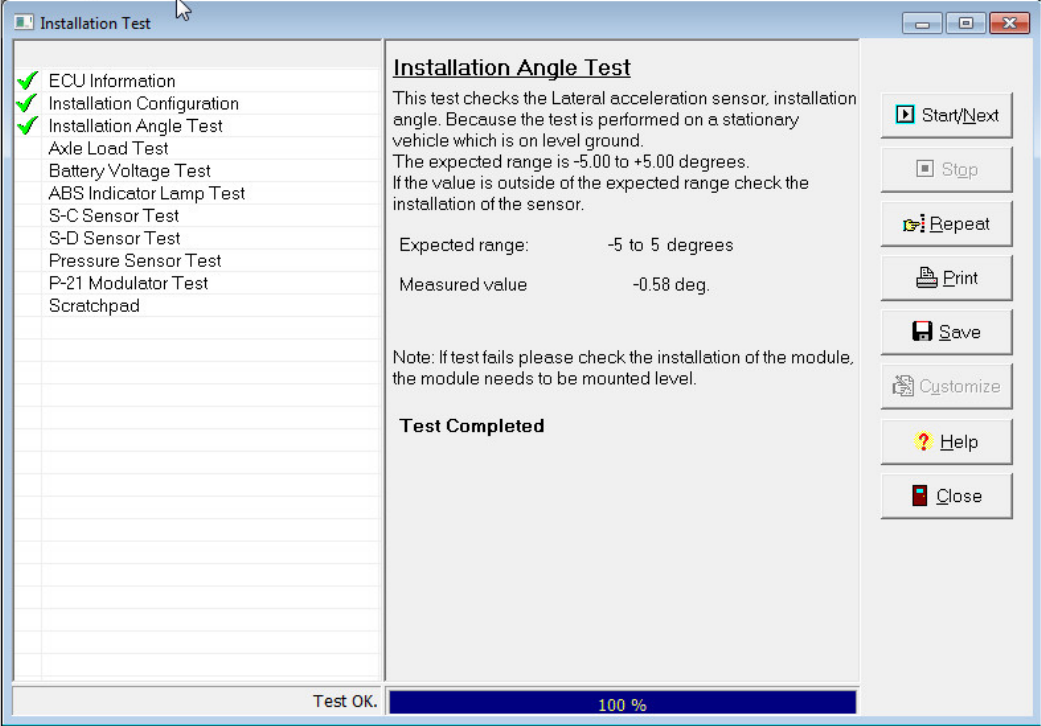

Installation Angle Test
The Installation Angle Test displays the vertical angle of the mounted ECU. The vertical angle must be
within ±5 degrees of vertical.
NOTE: The installation angle test will only be available if the ECU supports Bendix
®
Trailer Roll Stability
Program
®
(TRSP
®
).
Figure 33
