2

7 LEVER

PIN 9

8 TORSION SPRING

O-RING 15

PLUNGER 10

SHIM

12 GRADUATING SPRING

16 O-RING

13 PISTON

BODY

PISTON RETURN SPRING 14

VALVE 4

VALVE SPRING 5

MACHINE SCREW

6 DISC

5 LOCKING

BUTTON

CAP NUT SEALING RING 2

CAP NUT 1

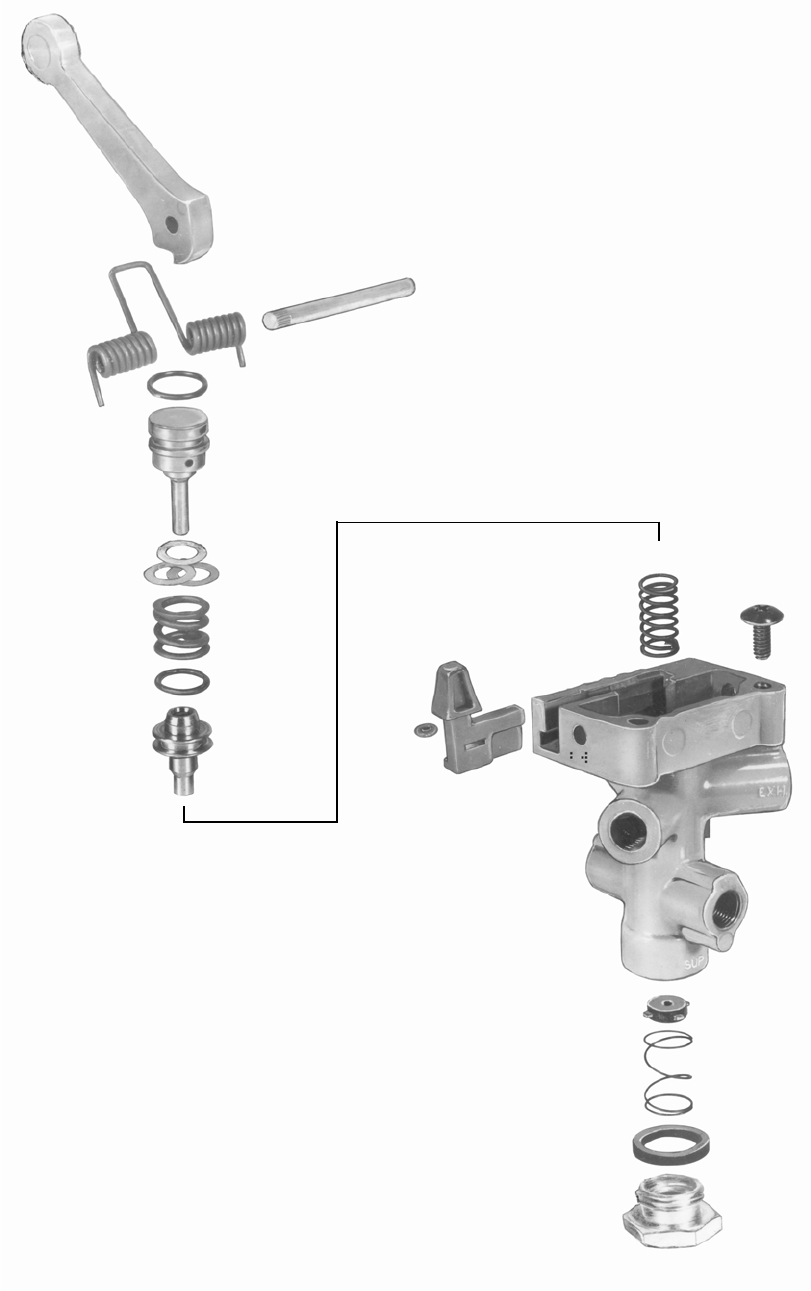

FIGURE 3
