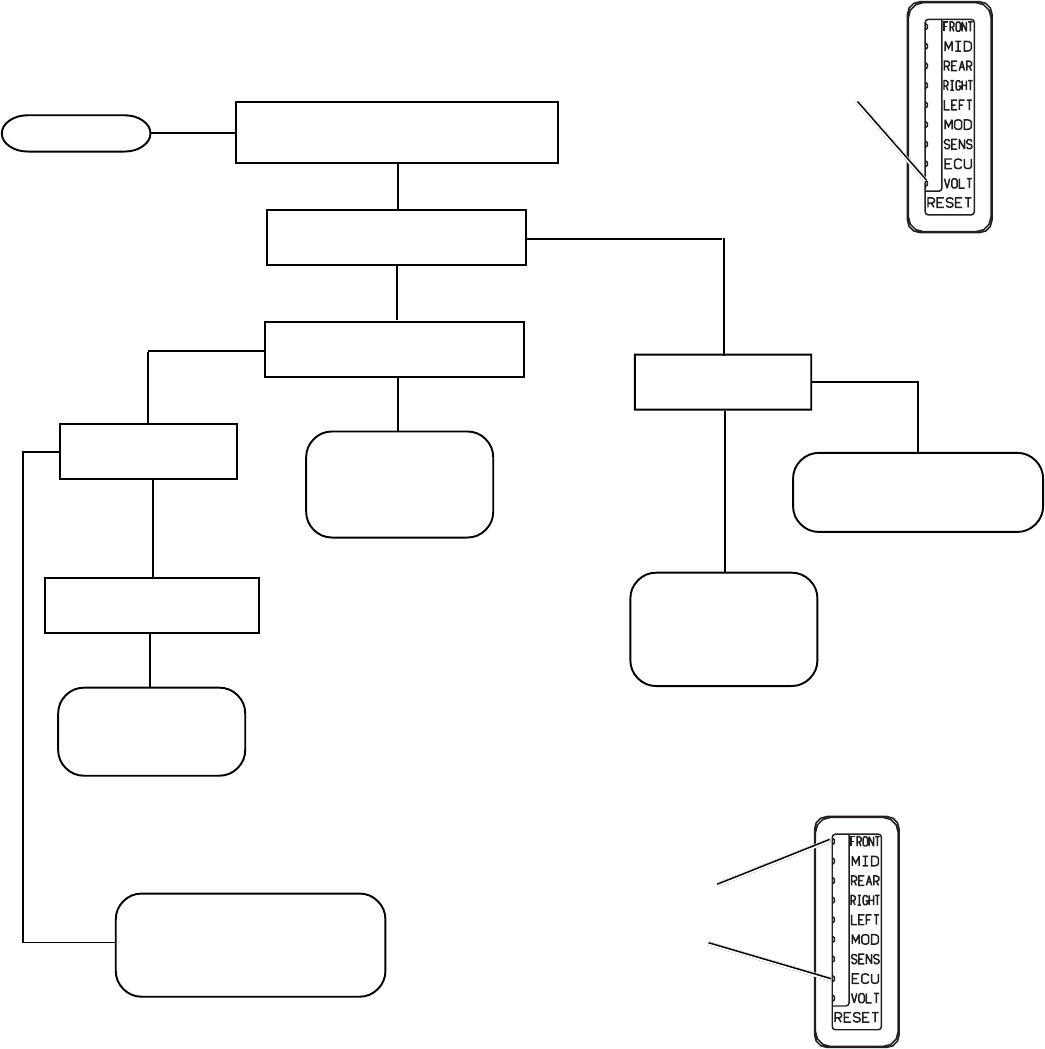

Check closely: Is green

LED Illuminated?

Inspect EC-14

™

controller and record

presence of illuminated LEDs

Is green LED flashing?

YES

Are any red LEDs

illuminated?

YES

NO (OFF)

Go to Section V

“Testing for Power

to the EC-14

™

controller”

Are any red LEDs

illuminated?

Go to Section IV

“Inspection for

Illuminated LEDs”

Record the condition of

all red LEDs

Go to Section X

“Testing For False Failure

Indication - Caused by Wheel

Speed Components”

Go to Section V

“Testing for Power

to the EC-14

™

controller”

CHECK

“VOLT” LED

Check

red LEDs

TROUBLESHOOTING

SECTION III

INSPECTION FOR ILLUMINATED LEDs

Replace EC-14

™

controller.

Repeat the “Initial Start-up

Procedure.”

ON?

FLASHING?

YES (ON)

ARE

ANY

ILLUMINATED?

YESNO

START HERE

1 2 ... 10 11 12 13 14 15 16 17 18 19 20 ... 23 24

SD-13-4784 1
FIGURE 2 - MC-14 2
ANTILOCK BRAKE SYSTEM 2
INPUTS AND COMMAND OUTPUTS 3
CONTROLLER INFORMATION 3
OPERATION 5
ANTILOCK CONTROLLED BRAKE 6
ANTILOCK SYSTEM OPERATION 6
COMPONENT FAULT STRATEGY 6
• An M-12 7
FIGURE 6 - MC-14 8
ANTILOCK WIRING SCHEMATIC 8
DIAGNOSTIC LEDS 10
"FRONT" LED 10
"MID" LED 10
"REAR" LED 10
TROUBLESHOOTING 11
