BENDIX A-18 TRAILER ABS Operations Instructions download pdf (Page 41)

Section 8

Appendixes

Page 40

Appendix B

Reconfigure Mode

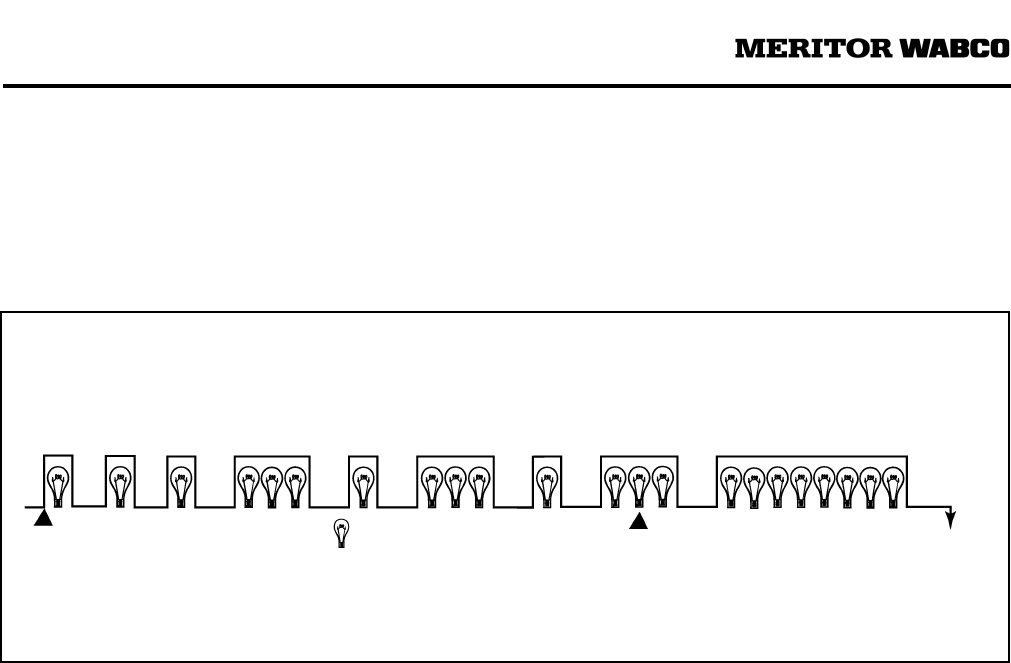

Blink Code Example (4S/2M Configuration)

Reconfigure Mode

Figure 8.2

1002098b

1 S 1 S 1 S

OFF

2.5 S

OFF

2.5 S

OFF

2.5 S

OFF

2.5 S

OFF

2.5 S

OFF

2.5 S

OFF

1 S

OFF

1 S

3 Flashes = I.D.

= 4S/2M

3 Flashes = I.D.

= 4S/2M

3 Flashes = I.D.

= 4S/2M2.5 S 2.5 S

8 Rapid Flashes =

ECU Reconfigured

Power ON;

ECU activated

= Light ON

S = Second(s)

Depress Switch

3 Seconds

Continuously

Identifies

Configuration
