14



Bendix®



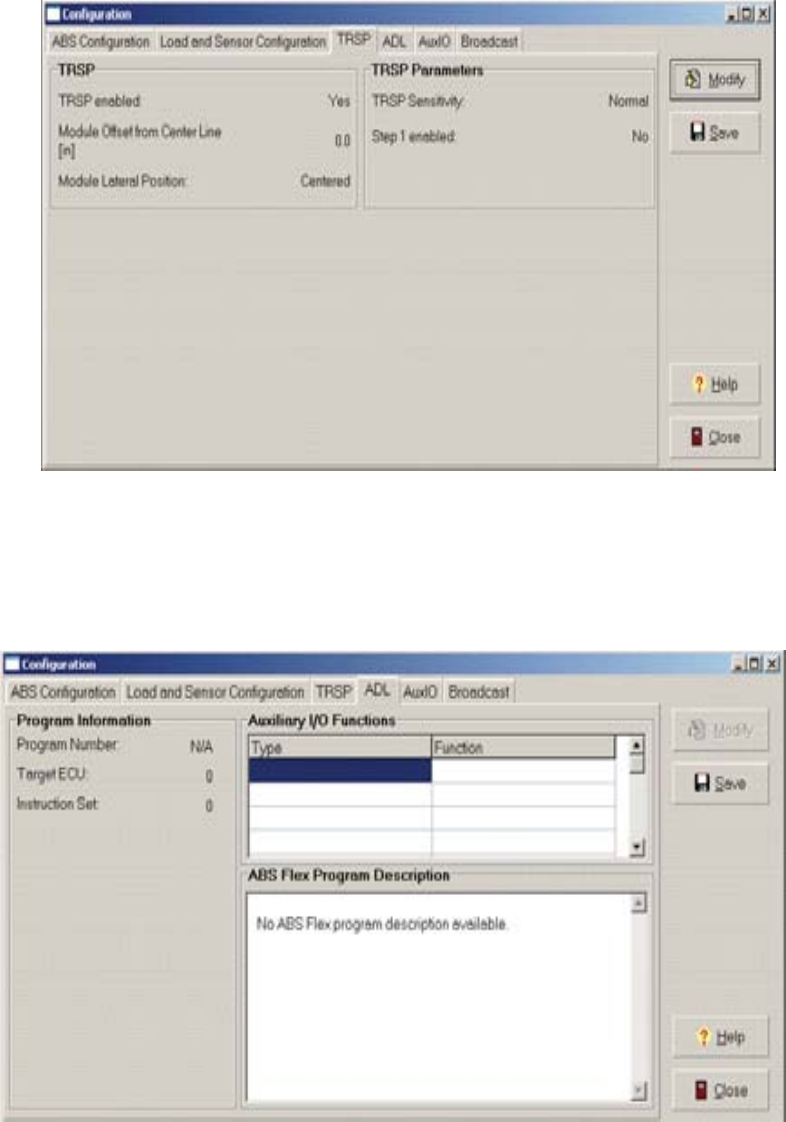

TrailerRollStabilityProgram(TRSP)Screen

Note: TRSP screen will be available if the Electronic Control Unit (ECU) supports TRSP. The TRSP window

allows the technician to check if TRSP is enabled, the TRSP module position, and the TRSP parameters.

Figure 13

Auxiliary Design Language (ADL)

The ADL screen allows the technician to verify if the ECU has an auxiliary design language program stored

for a speciﬁc operation. This screen is read only.

Figure 14
