14 QUALITY REMANUFACTURED P RODUCTS FROM BENDIX COMMERCIAL VEHICLE SYSTEMS LLC

COMPRESSORS

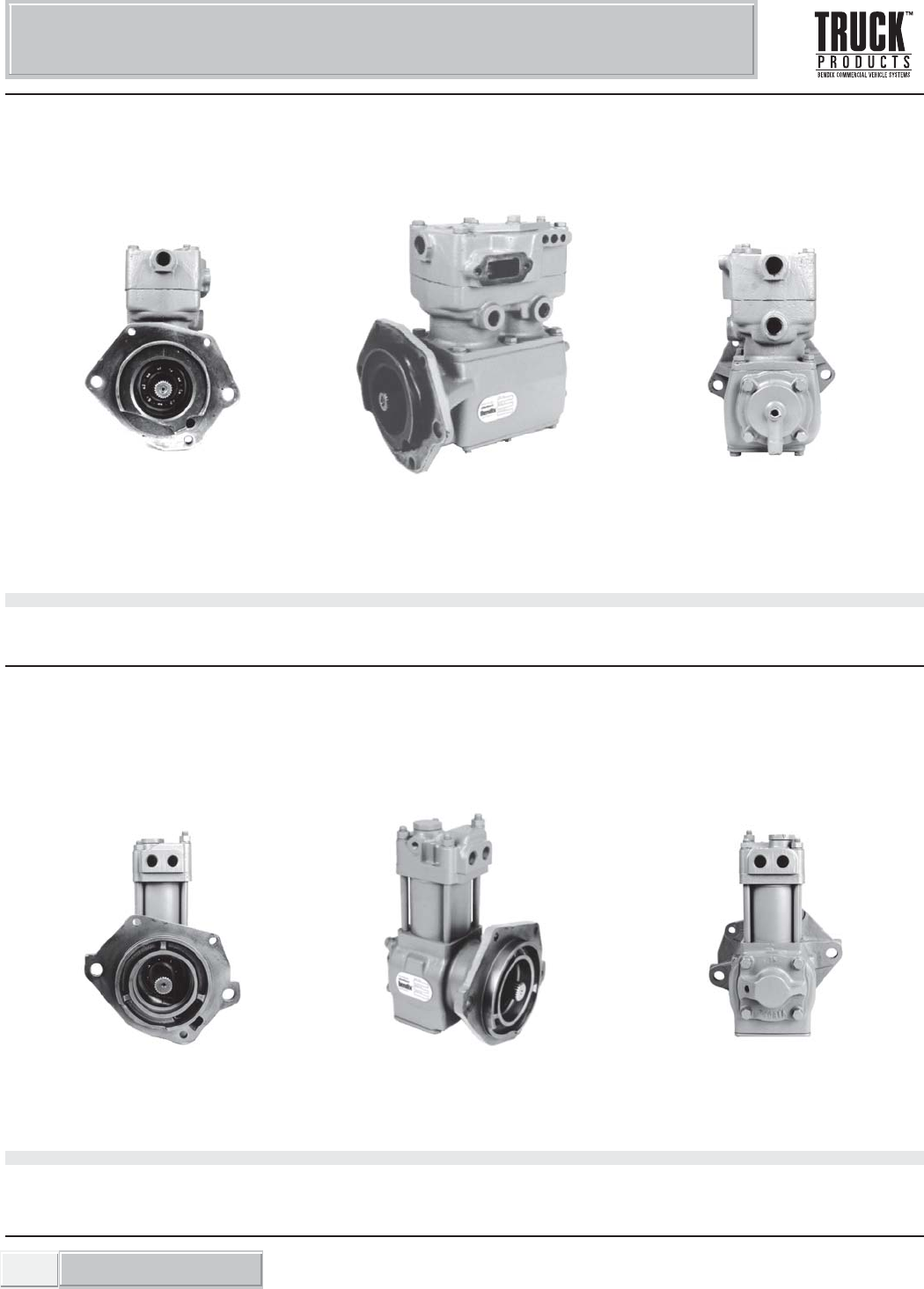

2P8711X Clayton Dewandre

Clayton Dewandre Single Cylinder Compressor with Caterpillar 3306 engine mounting flange and rotatable cylinder head. Water cooled cylinder head

and air cooled cylinder block.

2P8711X Shown

Specifications

Air Air Block Oil Oil

Part No. Inlet Discharge Wtr. Port Inlet Return Comments

2P8711X Optional Optional, Threaded N/A End Cover Drive Flange Head rotates in 180° increments

Two porting options

EL13151X Midland EL1300

Midland Model EL1300 Two Cylinder Compressor with Caterpillar 3306 engine mounting flange.

EL13151X Shown

Specifications

Air Air Block Oil Oil

Part No. Inlet Discharge Wtr. Port Inlet Return Comments

EL13151X Right Top, Flange Right End Cover Flange

CATERPILLAR ENGINE
